The Ford GT transmission can get even on just a casual drive and causing boiling clutch fluid resulting a loss in clutch pressure to the point the pedal sticks to the floor. The Ford Motorsport cooler is discontinued and other aftermarket options for upgrades are kits put together using universal cores. CSF changed that with this complete bolt on kit with a custom built core specifically for the Ford GT.

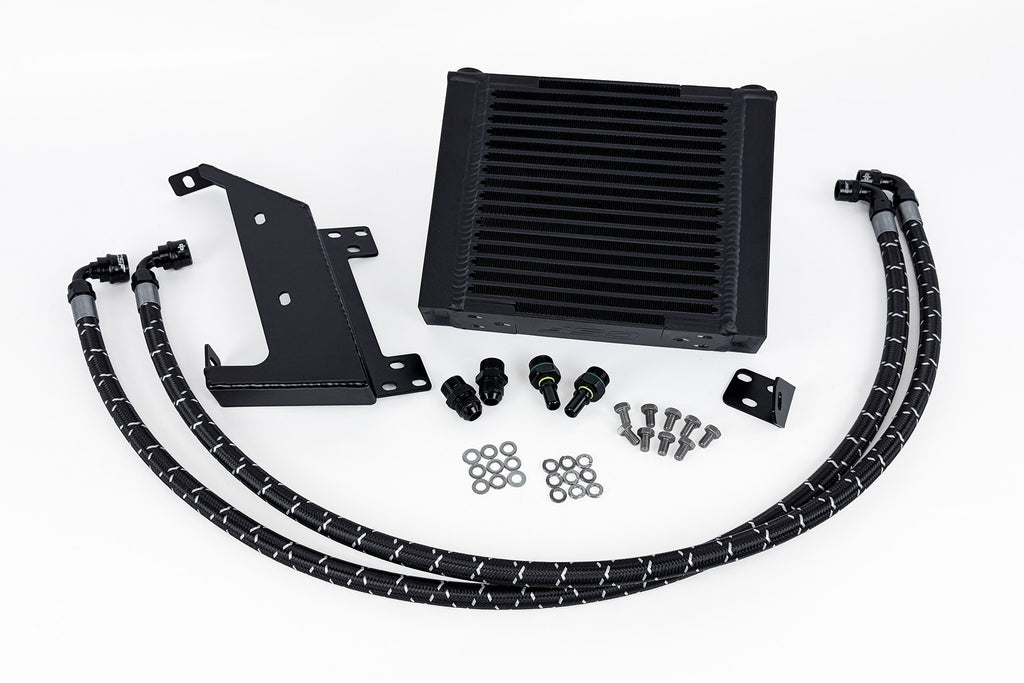

The original OE transaxle cooler worked fairly well given the design and cooler tech 20 years ago. As usual though, there is also room for improvement for the cooler and original lines. CSF’s Transaxle Cooler kit features a robust Bar & Plate Oil Cooler paired with laser cut mounting brackets and Motorsports grade lines with patented quick release fittings by DYME PSI.

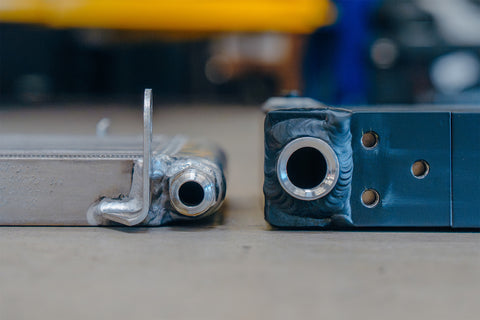

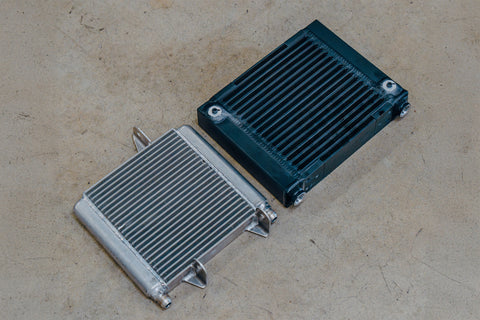

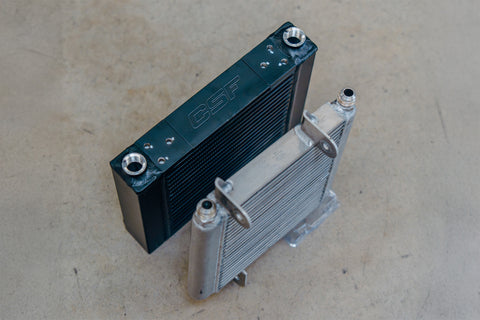

Compared to the Ford Motorsport unit, the CSF cooler has 90% more core volume and is almost double the thickness. The line’s inner diameter has also been increased for better flow and to maximize efficiency. CSF’s “Aero-Flow” Bar Design offers the best possible heat dissipation while being lightweight, strong, and while maintaining maximum flow.

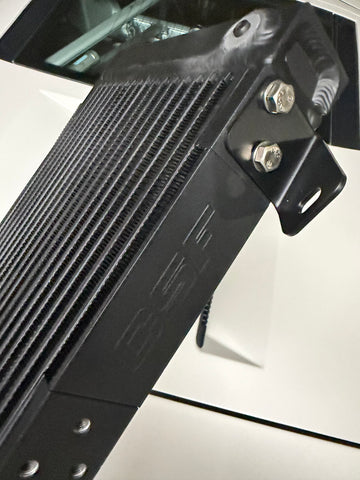

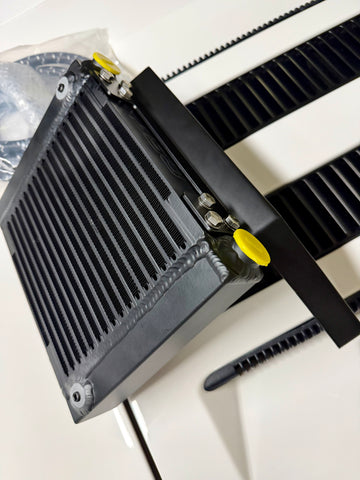

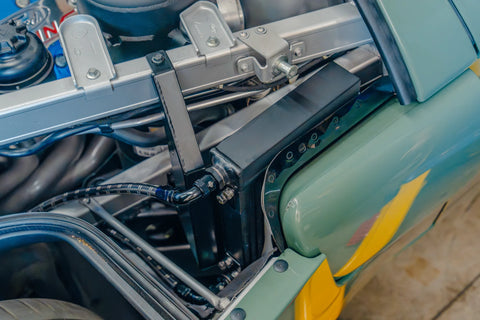

Laser cut mounting brackets bolt into the factory location requiring no modifications (drilling or cutting) to install. CSF includes pre-plugged 1/8 NPT ports on both end tanks for temp sensors or to use as bleeder ports. The oil cooler has a satin black finish for extreme protection against corrosion and debris.
CSF partnered with DYME PSI for their exceptional quality and innovative quick-release hose and fitting solutions. The DYME Pro/Spec Quick Release Fittings offer race-proven performance with the convenience of tool-free clamshell removal and capable of withstanding up to 10,000 PSI. Quick Release fittings make the installation of the CSF kit much faster than traditional threaded fittings. In addition, they make maintenance like fluid changes much less of a headache. The hoses are a Superstrasse CPE lined stainless steel braided rubber hose for maximum flexibility, flow, and chemical resistance. The lines are ideal for motorsports use and more than capable of handling the most extreme conditions.
